Camlock fittings, also known as cam and groove couplings, are a type of quick-connect fitting used to connect hoses and pipes in various industries. They are designed to be easy to use, requiring no tools for connection and disconnection, and are cost-effective. Camlock fittings are particularly suitable for dirty environments and frequent hose changes, making them popular in industries such as petroleum and industrial chemicals.

How Camlock Fittings Work

Camlock fittings work by utilizing a two-part connection known as a male/female coupling system. This system allows for a threadless, easy-to-use connection that enables quick and reliable seals to transport materials. The key components of a camlock fitting are the male adapter and the female coupler. To connect the fittings, the male adapter is inserted into the female coupler, and the handles of the female coupler are pressed down to engage the gasket and create a seal. This process ensures a leak-proof connection. To disconnect the fittings, the hose assembly must be depressurized, and the handles of the female coupler are pulled outward to disengage the gasket and break the seal.

The mechanism of a camlock fitting is based on the principle of mechanical locking. When the handles are pressed down, they rotate the internal cam mechanism, which moves the locking arms to grip the male adapter and create a tight seal. This design allows for a secure connection without the need for tools, making it ideal for applications where frequent connections and disconnections are required. The use of a gasket between the male and female components ensures that the connection is both airtight and watertight, preventing leaks and contamination. In addition to the basic male/female coupling system, there are also other types of camlock fittings that incorporate additional features such as safety locks, dust caps, and pressure relief valves. These accessories enhance the functionality and safety of the fittings, making them suitable for a wide range of applications. For example, safety locks can be used to prevent accidental disconnection, while dust caps can protect the fittings from debris and contaminants. Pressure relief valves are often used in high-pressure applications to ensure that the system remains safe and operational.

Types of Camlock Fittings

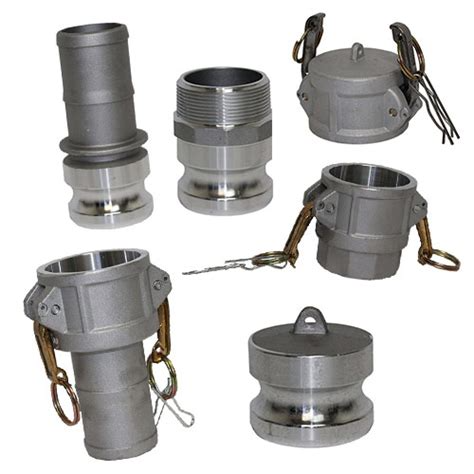

Camlock fittings come in various types, each designed for specific applications. The most common types include:

Each type of camlock fitting is designed to meet specific requirements, such as pressure ratings, material compatibility, and ease of use. For example, Type A and Type B fittings are commonly used in water and chemical applications, while Type C and Type D fittings are used for dry goods and abrasive materials. Type E and Type F fittings are often used in industrial applications where a secure connection is required, while Type DC and Type DP fittings are used to protect the camlock mechanism from dust and debris. The selection of the appropriate type of camlock fitting depends on the specific application and the requirements of the system. For instance, in the food and beverage industry, Type A and Type B fittings are often used because they are compatible with food-grade materials and can be easily cleaned. In contrast, in the chemical industry, Type C and Type D fittings are preferred because they are resistant to corrosion and can handle a wide range of chemicals. Additionally, in the construction and industrial sectors, Type E and Type F fittings are commonly used because they provide a secure connection and are suitable for high-pressure applications. The availability of different types of camlock fittings ensures that users can find a fitting that is suitable for their specific needs. Whether the application requires a simple connection for a garden hose or a secure connection for a high-pressure industrial system, there is a camlock fitting that can meet the requirements. The versatility of camlock fittings makes them a popular choice for a wide range of applications, from agriculture to aerospace.

Materials Used in Camlock Fittings

The choice of material depends on the specific application, such as the type of fluid being transferred, the working pressure, and the environmental conditions. For example, stainless steel camlock fittings are ideal for high-pressure applications in the food and pharmaceutical industries, while polypropylene camlock fittings are suitable for low-pressure applications in agriculture and water transport. In addition to these materials, there are also other materials that can be used for camlock fittings, such as copper, plastic, and composite materials. Each of these materials has its own set of advantages and disadvantages, and the choice of material depends on the specific requirements of the application. For instance, copper camlock fittings are often used in plumbing applications because they are resistant to corrosion and can handle a wide range of water temperatures. Plastic camlock fittings are commonly used in agricultural applications because they are lightweight and resistant to corrosion. The material of the camlock fitting also affects the performance and durability of the fitting. For example, stainless steel camlock fittings are more durable and can withstand higher temperatures and pressures compared to aluminum or brass camlock fittings. However, they are also heavier and more expensive. On the other hand, polypropylene camlock fittings are lightweight and resistant to corrosion, but they are not suitable for high-temperature applications. The choice of material for a camlock fitting is an important consideration when selecting the appropriate fitting for a specific application. Users should evaluate the material requirements based on the type of fluid being transferred, the working pressure, and the environmental conditions. By selecting the appropriate material, users can ensure that the camlock fitting is both functional and durable, providing a reliable connection for their application.

Sizing and Measurement

Proper sizing is crucial for ensuring a secure connection and optimal performance. Camlock fittings are measured by the outside diameter (OD) of the adapter head or the inside diameter (ID) of the coupler. The standard for camlock fittings is based on the US military specification Mil-C-27487, now superseded by A-A-59326D, and the European standard EN 14420-6. These standards ensure interchangeability between manufacturers, except for specific sizes like ½”, 5”, and 8”, which may cause compatibility issues.

The sizing of camlock fittings is determined by the size of the hose or pipe that needs to be connected. The outside diameter (OD) of the adapter head is the measurement that is used to determine the size of the fitting. The inside diameter (ID) of the coupler is also an important measurement, as it determines the size of the opening through which the hose or pipe passes. The standard sizes for camlock fittings are typically in increments of ½”, 1”, 1½”, 2”, 3”, 4”, 5”, and 8”. These sizes are standardized to ensure that fittings from different manufacturers can be used interchangeably. However, there are some exceptions to the standard sizing, particularly for sizes like ½”, 5”, and 8”. These sizes are not standardized and may vary between manufacturers, which can cause compatibility issues. Users should always check the specifications of the camlock fitting to ensure that it is compatible with the hose or pipe they are using. In addition to the standard sizing, there are also other factors that can affect the sizing of camlock fittings. For example, the type of application and the working pressure can influence the size of the fitting. In high-pressure applications, larger fittings are often required to ensure a secure connection. In contrast, in low-pressure applications, smaller fittings may be sufficient. The importance of proper sizing cannot be overstated, as using the wrong size can lead to leaks, damage to the fitting, or even failure of the system. Users should always measure the hose or pipe they are using and select a camlock fitting that is the correct size. By following the standard sizing guidelines and ensuring that the fitting is compatible with the hose or pipe, users can ensure a secure and reliable connection.

Selection Criteria

When selecting a camlock fitting, it is important to consider several factors, including:

The industry-standard "STAMPED" method provides a comprehensive checklist to guide the selection process. This method includes the following fields:

• S – Size
• T – Temperature
• A – Application
• M – Material
• P – Pressure rating
• E – Ends or connections
• D – Delivery (extras such as material certifications)

By carefully evaluating each of these factors, users can select the most suitable camlock fitting for their needs, ensuring safety, efficiency, and cost-effectiveness.

Accessories and Spares

Camlock fittings come with various accessories and spares to ensure optimal performance and convenience. These include:

These accessories are essential for ensuring the proper function and safety of camlock fittings. For example, gaskets and seals are crucial for maintaining a tight connection and preventing leaks. R clips are used to keep the locking arms in place, ensuring that the connection remains secure even when the system is under pressure. Safety locks are particularly useful in applications where accidental disconnection could lead to safety hazards or operational disruptions. Hose clamps are used to secure the hose to the fitting, preventing it from slipping or coming loose during operation.

In addition to these standard accessories, there are also other specialized accessories that can be used with camlock fittings. For example, dust caps and dust plugs are used to protect the camlock mechanism from dust and debris, which can affect the performance and longevity of the fitting. Pressure relief valves are often used in high-pressure applications to ensure that the system remains safe and operational. These accessories are designed to enhance the functionality and safety of camlock fittings, making them suitable for a wide range of applications.

The availability of different accessories and spares ensures that users can find the right components to meet their specific needs. Whether the application requires a simple connection for a garden hose or a secure connection for a high-pressure industrial system, there are accessories available to ensure the proper function and safety of the camlock fitting. By selecting the appropriate accessories and spares, users can ensure that the camlock fitting is both functional and durable, providing a reliable connection for their application.

Maintenance and Safety

Proper maintenance is essential for ensuring the longevity and reliability of camlock fittings. Key maintenance practices include:

Safety is also a critical consideration when using camlock fittings. Users should ensure that the hose assembly is depressurized before disconnecting the fittings to prevent accidents. Additionally, it is important to follow proper handling procedures and provide adequate training to all personnel working with camlock fittings. For example, in high-pressure applications, it is essential to ensure that the system is properly depressurized before any disconnection or maintenance is performed. This helps to prevent injuries and equipment damage.

In addition to these maintenance practices, there are also other safety considerations that users should be aware of. For example, in hazardous environments, it is important to use camlock fittings that are designed to meet specific safety standards. These standards may include requirements for explosion-proof ratings, chemical resistance, and temperature resistance. Users should also be aware of the potential risks associated with the use of camlock fittings and take appropriate precautions to mitigate these risks.

The importance of proper maintenance and safety cannot be overstated, as using the wrong fittings or neglecting maintenance can lead to leaks, damage to the fitting, or even failure of the system. Users should always follow the manufacturer's guidelines for maintenance and safety, and ensure that they are using the correct accessories and spares for their specific application. By following these best practices, users can ensure that the camlock fitting is both functional and safe, providing a reliable connection for their application.

Cost Considerations

When purchasing camlock fittings, cost is a significant factor that buyers should consider. The cost of camlock fittings can vary depending on several factors, including the type of fitting, the material used, the size of the fitting, and the brand or manufacturer. For example, stainless steel camlock fittings are generally more expensive than aluminum or polypropylene fittings due to their higher durability and resistance to corrosion. However, the initial cost may be offset by the long-term savings from reduced maintenance and replacement costs.

In addition to the cost of the fitting itself, there are also other costs associated with the use of camlock fittings, such as the cost of accessories (e.g., gaskets, seals, safety locks), maintenance, and replacement. Users should also consider the labor cost for installation and any potential warranty or service support provided by the manufacturer.

The cost-effectiveness of camlock fittings can be evaluated by considering the total cost of ownership, which includes the initial purchase price, the cost of maintenance, and the cost of replacement over the product's lifespan. For example, while a stainless steel camlock fitting may be more expensive upfront, it may be more cost-effective in the long run due to its durability and resistance to corrosion. On the other hand, a polypropylene camlock fitting may be cheaper upfront but may require more frequent replacement due to its lower durability.

Users should also consider the availability of the fitting in the market and the lead time for delivery. Some manufacturers may offer customized fittings or specialized fittings for specific applications, which may come at a higher cost but may be necessary for certain applications.

By carefully evaluating the cost considerations, users can make informed decisions when selecting camlock fittings that are both cost-effective and suitable for their specific application.

Environmental and Safety Standards

Camlock fittings are subject to various environmental and safety standards to ensure their performance and reliability in different applications. These standards are designed to ensure that the fittings are safe to use, durable, and compatible with the environment in which they are used.

These standards ensure that camlock fittings are tested and certified for specific performance characteristics, such as pressure resistance, temperature resistance, chemical resistance, and durability. For example, stainless steel camlock fittings are often tested for high-temperature resistance and corrosion resistance, making them suitable for use in high-pressure and high-temperature environments. Polypropylene camlock fittings, on the other hand, are often tested for low-temperature resistance and chemical resistance, making them suitable for use in low-temperature environments and agricultural applications.

In addition to these standards, there are also industry-specific standards for different applications. For example, food and beverage industry standards may require camlock fittings to be food-grade and easy to clean, while chemical industry standards may require camlock fittings to be resistant to a wide range of chemicals. Construction and industrial sectors may require camlock fittings to be durable and suitable for high-pressure applications.

Users should ensure that the camlock fittings they purchase are certified and compliant with the relevant environmental and safety standards for their specific application. This helps to ensure that the fittings are safe to use, durable, and compatible with the environment in which they are used.

Installation and Usage Tips

Proper installation and usage of camlock fittings are essential to ensure their performance and safety. Here are some key tips for installing and using camlock fittings:

1. Depressurize the System: Before disconnecting or connecting camlock fittings, ensure that the system is depressurized to prevent accidents or damage.
2. Use the Correct Tools: While camlock fittings are designed to be tool-free, it is recommended to use gloves and eye protection to protect against cuts and injuries.
3. Follow the Manufacturer's Instructions: Always follow the manufacturer's instructions for installation and usage to ensure proper function and safety.
4. Inspect the Fittings Regularly: Regularly inspect the camlock fittings for wear, damage, or corrosion to ensure they continue to function properly.
5. Clean the Fittings: Clean the camlock fittings with mild detergent and water to remove debris and contaminants that can affect performance.
6. Lubricate the Cam Arms: Apply light lubricant to the cam arms and grooves to ensure smooth operation and prevent wear and tear.
7. Secure the Hose: Use hose clamps to secure the hose to the fitting and prevent leaks or disconnections during operation.

By following these installation and usage tips, users can ensure that the camlock fittings are used safely and effectively. This helps to maximize the lifespan of the fittings and ensure reliable performance in their specific application.

Future Trends and Innovations

The field of camlock fittings is continuously evolving, with new trends and innovations emerging to improve performance, safety, and sustainability. Some of the key trends and innovations in the camlock fitting industry include:

1. Smart Camlock Fittings: The integration of smart technology into camlock fittings to provide real-time monitoring of pressure, temperature, and flow rates. This can help users detect leaks or malfunctions early and prevent system failures.
2. Eco-Friendly Materials: The development of eco-friendly materials for camlock fittings that are biodegradable and environmentally sustainable. This is part of a broader effort to reduce the environmental impact of industrial equipment.
3. Improved Durability: The use of advanced materials and design improvements to enhance the durability of camlock fittings, making them more resistant to wear and tear.
4. Customization and Specialization: The increasing demand for customized and specialized camlock fittings for specific applications, such as high-pressure, high-temperature, or hazardous environments.
5. Automation and Integration: The integration of camlock fittings into automated systems and industrial automation to improve efficiency and reduce manual labor.

These trends and innovations are shaping the future of the camlock fitting industry, making it more efficient, safer, and sustainable. As technology continues to advance, camlock fittings are expected to become even more versatile and reliable in a wide range of applications.

Common Applications of Camlock Fittings

Camlock fittings are widely used across various industries due to their ease of use, durability, and versatility. Here are some of the most common applications of camlock fittings:

These applications highlight the versatility of camlock fittings in diverse environments. Whether the application requires high-pressure connections, sterile environments, or portable systems, there is a camlock fitting that can meet the requirements.

Common Issues and Troubleshooting

Despite their reliability and durability, camlock fittings can sometimes experience issues. Here are some common issues and how to troubleshoot them:

By identifying and addressing these common issues, users can ensure the proper function and safety of their camlock fittings. Regular inspection and maintenance are essential to prevent these issues from occurring.

Training and Education

Proper training and education are essential for ensuring the safe and effective use of camlock fittings. Here are some key points to consider:

• Training Programs: Many manufacturers and suppliers offer training programs to help users understand the correct use and maintenance of camlock fittings.
• Safety Certifications: Users should obtain safety certifications to ensure they are qualified to handle camlock fittings in high-risk environments.
• Manufacturer Guidelines: Always follow the manufacturer's guidelines for installation, usage, and maintenance.
• Regular Training: Regular training sessions should be conducted to update users on the latest developments and best practices.
• Hands-On Experience: Hands-on experience with camlock fittings is essential for understanding theirfunction and safety procedures.

By investing in training and education, users can ensure the safe and effective use of camlock fittings in various applications.

Customer Support and Warranty

Customer support and warranty are important considerations when purchasing camlock fittings. Here are some key points to consider:

• Warranty Coverage: Most manufacturers offer warranty coverage for their camlock fittings, which can include repairs, replacements, or refunds for defects.
• Customer Support: Reliable customer support is essential for resolving issues and providing assistance. Users should choose a manufacturer with good customer support.
• Technical Support: Technical support is available for installation, troubleshooting, and maintenance of camlock fittings.
• Return Policy: Understand the return policy of the manufacturer to ensure that defective or unsuitable products can be returned or exchanged.
• Service Contracts: Some manufacturers offer service contracts that provide ongoing support and maintenance for camlock fittings.

By choosing a manufacturer with good customer support and warranty, users can ensure the long-term reliability and safety of their camlock fittings.

Importance of Quality and Certification

When purchasing camlock fittings, quality and certification are critical factors that ensure safety, reliability, and performance. Here are some key points to consider:

• Quality Assurance: High-quality camlock fittings are tested for durability, strength, and resistance to corrosion, heat, and chemicals.
• Certifications: Look for certifications such as ISO, CE, or OSHA to ensure that the fittings meet international standards for safety and performance.
• Material Compliance: Ensure that the material used in the fitting is compatible with the fluid being transferred and meets environmental and safety requirements.
• Manufacturer Reputation: Choose a reliable manufacturer with a good reputation for quality and customer service.
• Third-Party Testing: Some manufacturers may offer third-party testing to verify the performance and safety of their camlock fittings.

By prioritizing quality and certification, users can ensure that their camlock fittings are safe, reliable, and suitable for their specific application.

Global Market and Availability

The global market for camlock fittings is growing and expanding, with increasing demand from various industries. Here are some key points to consider:

• Market Growth: The camlock fitting market is expected to grow due to increased demand in agriculture, construction, and industrial sectors.
• Regional Availability: Camlock fittings are available in various regions, with different manufacturers and suppliers offering customized and specialized products.
• Online Marketplaces: Users can purchase camlock fittings from online marketplaces and manufacturer websites, which offer a wide range of options and competitive pricing.
• Local Suppliers: In some regions, local suppliers may offer more convenient and cost-effective options for camlock fittings.
• Custom Manufacturing: Some manufacturers offer custom manufacturing of camlock fittings to meet specific application requirements.

By understanding the global market and availability of camlock fittings, users can make informed decisions about where to purchase and what to choose for their specific needs.

Future of Camlock Fittings

The future of camlock fittings is shaped by technological advancements, environmental concerns, and industry trends. Here are some key trends that are expected to impact the future of camlock fittings:

• Smart Technology Integration: The integration of smart technology into camlock fittings to provide real-time monitoring of pressure, temperature, and flow rates. This can help users detect leaks or malfunctions early and prevent system failures.
• Sustainability and Eco-Friendly Materials: The development of eco-friendly materials for camlock fittings that are biodegradable and environmentally sustainable. This is part of a broader effort to reduce the environmental impact of industrial equipment.
• Improved Durability and Performance: The use of advanced materials and design improvements to enhance the durability of camlock fittings, making them more resistant to wear and tear.
• Customization and Specialization: The increasing demand for customized and specialized camlock fittings for specific applications, such as high-pressure, high-temperature, or hazardous environments.
• Automation and Integration: The integration of camlock fittings into automated systems and industrial automation to improve efficiency and reduce manual labor.

These trends and innovations are shaping the future of the camlock fitting industry, making it more efficient, safer, and sustainable. As technology continues to advance, camlock fittings are expected to become even more versatile and reliable in a wide range of applications.

Conclusion

Camlock fittings are a versatile and reliable solution for connecting hoses and pipes in various industries. Their ease of use, cost-effectiveness, and durability make them a popular choice for applications ranging from agriculture to aerospace. By understanding the different types, materials, and selection criteria for camlock fittings, users can ensure optimal performance and safety in their applications. Proper maintenance and the use of appropriate accessories are essential for maximizing the lifespan and reliability of camlock fittings. Whether the application requires a simple connection for a garden hose or a secure connection for a high-pressure industrial system, there is a camlock fitting that can meet the requirements. The versatility of camlock fittings makes them a popular choice for a wide range of applications, from agriculture to aerospace.
