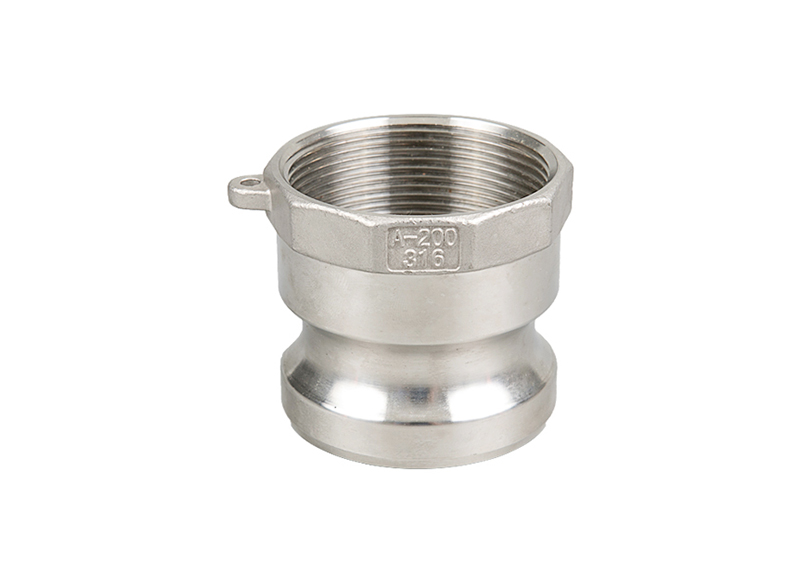

Stainless steel type A camlock coupling

Stainless steel type A camlock coupling

Ningbo Chili Hardware Co., Ltd.

Standard:Our camlock coupling are made to standard of A - A-59326(previously called MIL-C-27487)or DIN 2828.

Material:stainless steel

Pins, Rings and Safety clips:We use steel Pins,Rings and Safety clips.

Gasket:NBR(Other materials are available on request.)

Thread:NPT, BSP (We usually make the female thread parallel BSPP, male thread tapered BSPT)

Technics:Investment casting

Application: Camlock Coupling is widely used in chemical, oil and gas, mining, fire-fighting, agriculture, tank car.

MOQ: 50 Each Product

Delivery: 20-35days (according to quantity)

Port: Ningbo and Shanghai

0

Stainless steel type A camlock coupling Details

SIZE PART #1 PART #2
1/2 " CL-050A-SS316 CL-050A-SS304
3/4 " CL-075A-SS316 CL-075A-SS304
1" CL-100A-SS316 CL-100A-SS304
1-1/4 " CL-125A-SS316 CL-125A-SS304
1-1/2 " CL-150A-SS316 CL-150A-SS304
2 " CL-200A-SS316 CL-200A-SS304
2-1/2 " CL-250A-SS316 CL-250A-SS304
3 " CL-300A-SS316 CL-300A-SS304
4 " CL-400A-SS316 CL-400A-SS304
5 " CL-500A-SS316 CL-500A-SS304
6 " CL-600A-SS316 CL-600A-SS304



Quick Stainless steel type A camlock coupling can finish sealing in a snap without any requirement of tools. Stretch the arms of the coupler, and then insert the adapter into the coupler until contact with the gasket. The whole process of cam & groove connection will last several seconds. Available from 1/2" to 6" and 3/4" through 6" is interchangeable.


Connection between the linkers and insert bodys has interchangeability.You can connect multiple pipes free. It is easy to split and operate.

In case you need more information about our goods, we shall be only too glad to answer your inquiries at any time.
